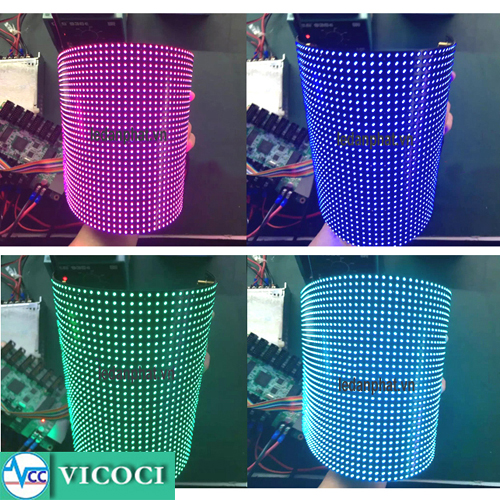

MODULE P4 CONG

Mô tả:

Indoor Fixed Series -Parameters Model LINSN-SL-P4 LINSN-SL-P5 LINSN-SL-P6 LINSN-SL-P8 Pixel Pitch 4 mm 5 mm 6 mm 8 mm LED Type SMD2121 SMD2121 SMD3528 SMD3528 Configuration 1R1G1B 1R1G1B 1R1G1B 1R1G1B Module Size 256*128 mm 320*160 mm 192*192 mm 256*128 mm Pixel Density 62500 pixel/㎡ 40000 pixel/㎡ 27777 pixel/㎡ 15625 pixel/㎡ Refresh Rate ≥ 1920Hz ≥ 1920Hz ≥ 1500Hz ≥ 1920Hz Gray Scale 16 Bit 16 Bit 16 Bit 16 Bit Brightness ≥ 1200 cd/㎡ ≥ 1500 cd/㎡ ≥ 1800 cd/㎡ ≥ 1200 cd/㎡ Scan Way 1/16 1/16 1/8 1/8 Frame Rate 50HZ~60HZ 50HZ~60HZ 50HZ~60HZ 50HZ~60HZ Viewing Angle H:140°, V:140° H:140°, V:140° H:140°, V:140° H:140°, V:140° Max.Power Consumption 270W/Panel 290W/Panel 450W/Panel 370W/Panel Avg.Power Consumption 90W/Panel 95W/Panel 150W/Panel 120W/Panel Control System Nova/Linsn/Dbstar Nova/Linsn/Dbstar Nova/Linsn/Dbstar Nova/Linsn/Dbstar Operation System Windows XP/7/10 Windows XP/7/10 Windows XP/7/10 Windows XP/7/10 Working-Temperature -20℃~60℃ -20℃~60℃ '-20℃~60℃ -20℃~60℃ Working Humidity 10%~90% RH 10%~90% RH 10%~90% RH 10%~90% RH Input Voltage AC 110~220 V AC 110~220 V AC 110~220 V AC 110~220 V Blind spot rate ≤0.01% ≤0.01% ≤0.01% ≤0.01% MTBF 35000 Hour 35000 Hour 35000 Hour 35000 Hour Lifespan 100000 Hour 100000 Hour 100000 Hour 100000 Hour Certification CCC,CE,RoHs,ETL CCC,CE,RoHs,ETL CCC,CE,RoHs,ETL CCC,CE,RoHs,ETL
